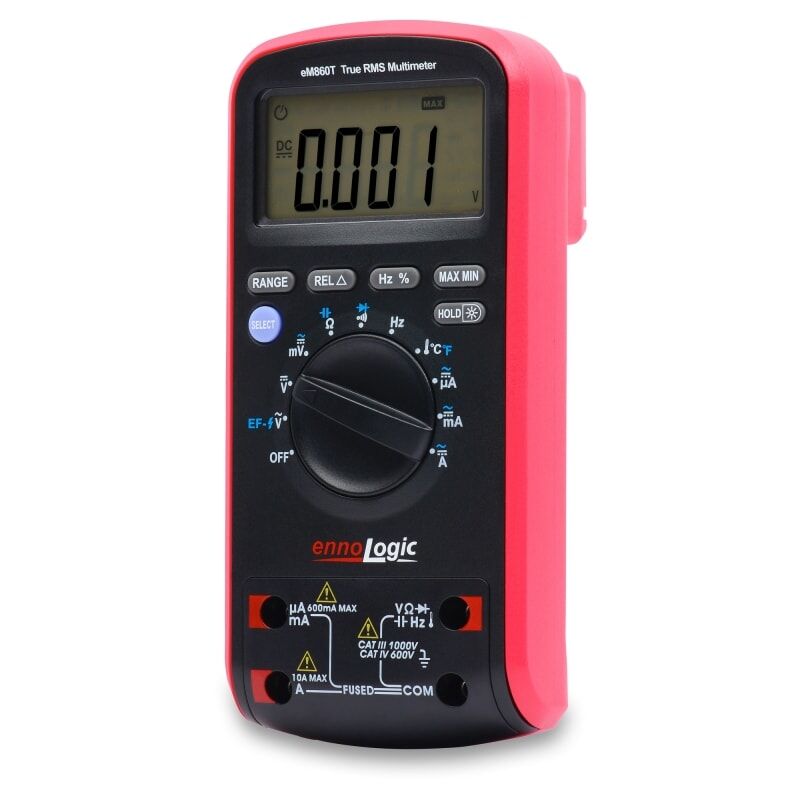

True RMS Digital Multimeter eM860T

$59.95

Availability: In stock

Get fast, accurate and easy to read measurements for a wide range of applications with the eM860T TRMS multimeter.

The eM860T accurately measures AC and DC voltage and current, resistance, capacitance, temperature, frequency, and duty cycle, as well as continuity, diodes, and features a non-contact voltage detect. This meter allows auto or manual ranging, relative measurement, max/min display and data hold.

Description

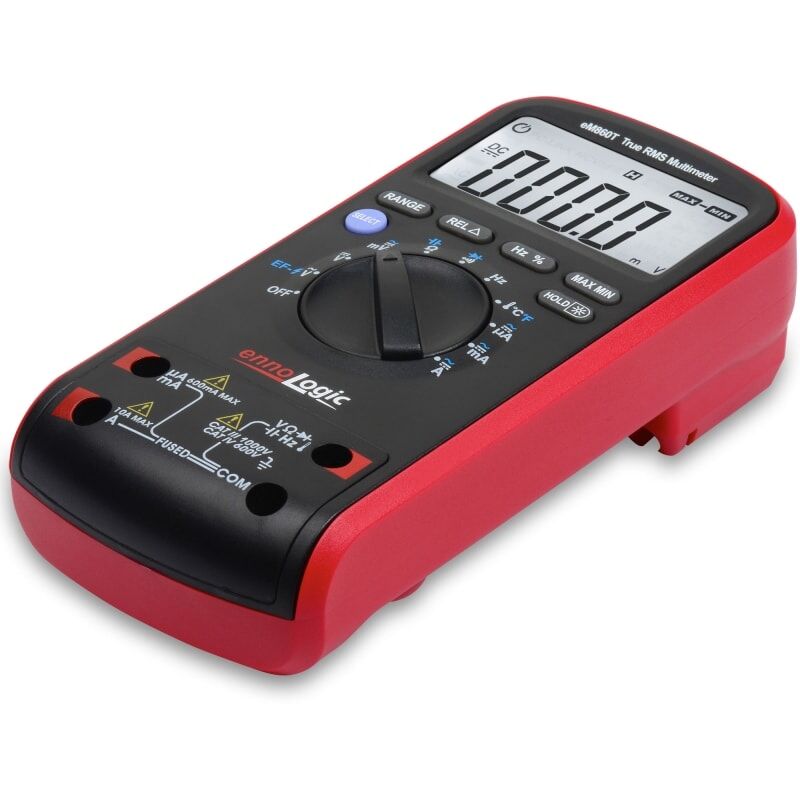

eM860T TRMS Digital MultimeterFinding shorts, testing wiring and general troubleshooting is easy with the eM860T multimeter

Whether you’re diagnosing a faulty breaker in an electrical panel, a bad wire in a wall outlet or simply testing a battery, the eM860T gives you all the versatility you need.

Use this multimeter to detect shorts using the continuity function – the meter will beep when there is a short or very low resistance.

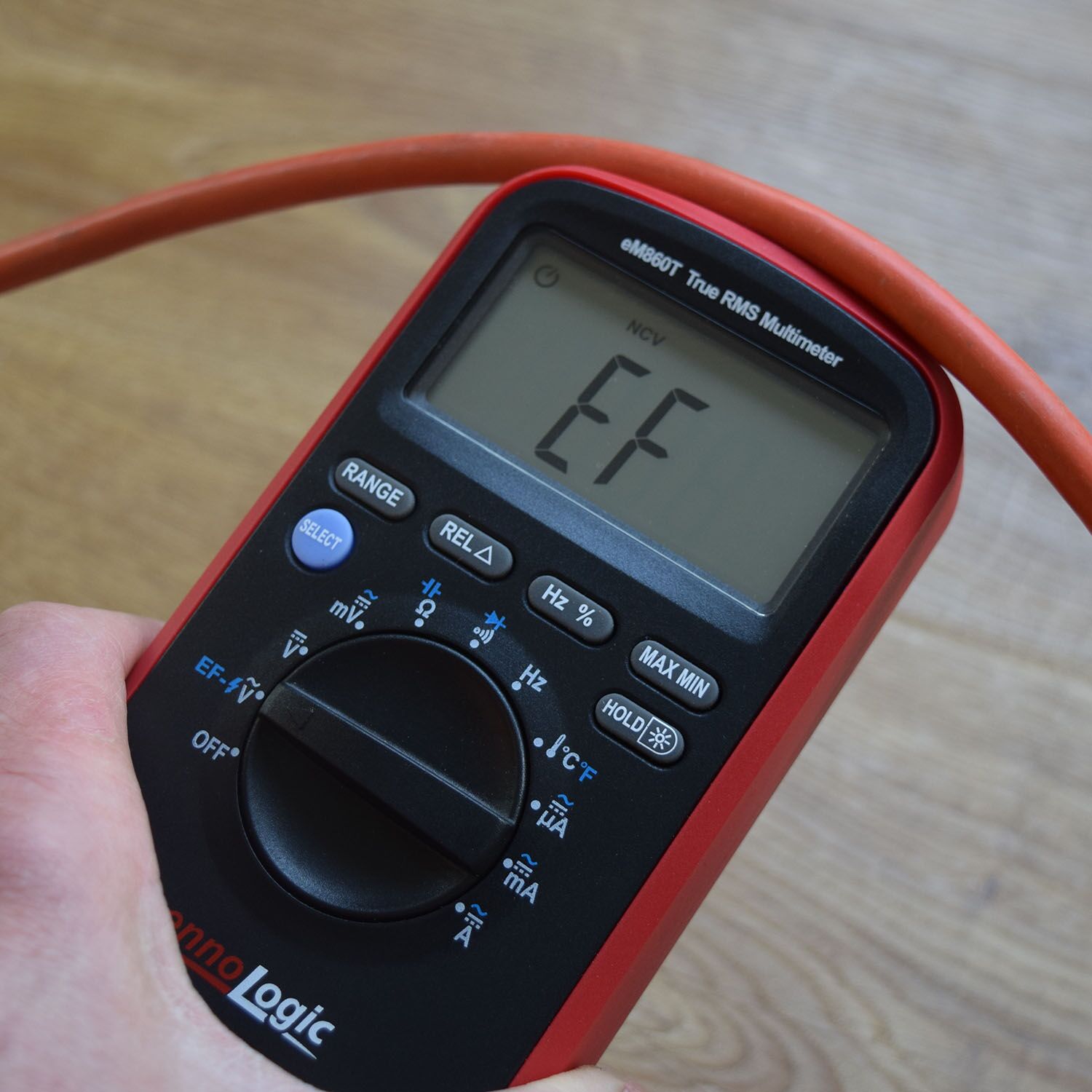

Or find a break in an extension cord with the Non-Contact Voltage Detect function. Simply run the top of the meter along the insulated cord – when the meter stops beeping you have located the break in the wires.

Avoid expensive technician bills by doing simple HVAC diagnostics yourself

Whether it’s your air conditioner or a geothermal heat pump, malfunctions can be costly and time consuming.

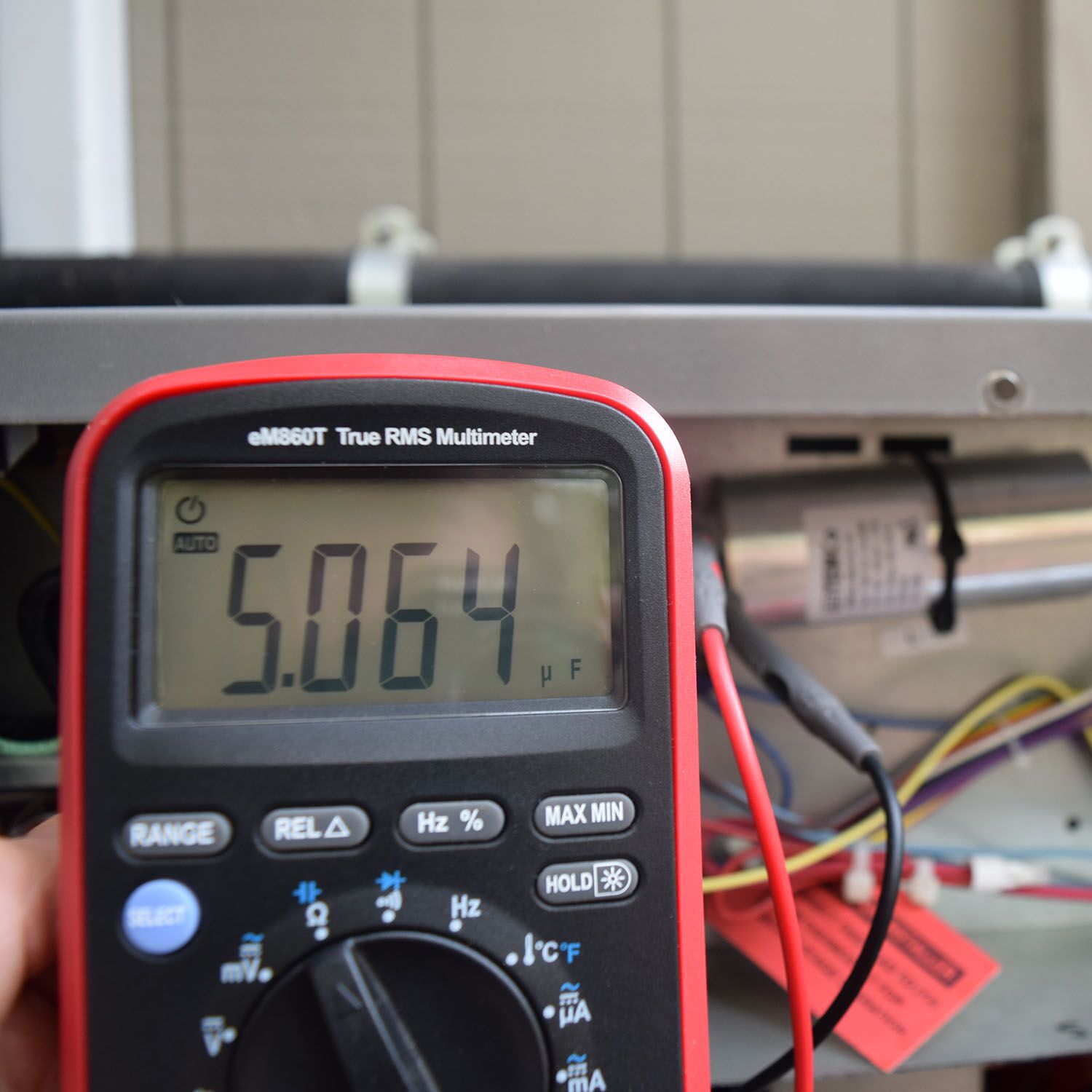

With the eM860T you can quickly diagnose potential problems and save money. Find and replace blown fuses, faulty start and run capacitors, and fix other minor issues and avoid unnecessary expensive service technician visits.

Diagnose automotive electrical systems and easily test your battery, fuses, lights, fan motor and more with the ennoLogic eM860T Multimeter

This multimeter can measure DC voltages very accurately and with auto-ranging, so getting into the electrical system of your car is a simple as setting the device to the DC Voltage function, plugging in your test leads and taking measurements.

Whether your windshield wiper motor isn’t working or one of your tail lights is out, or a door switch has gone intermittent, use the wiring diagram for your car and test at various locations in the circuit between your battery and the faulty component to narrow down where the problem is. Use the Voltage measurement function to find where a circuit loses power, and use Ohm and Continuity checker functions to find shorted, broken or corroded wires.

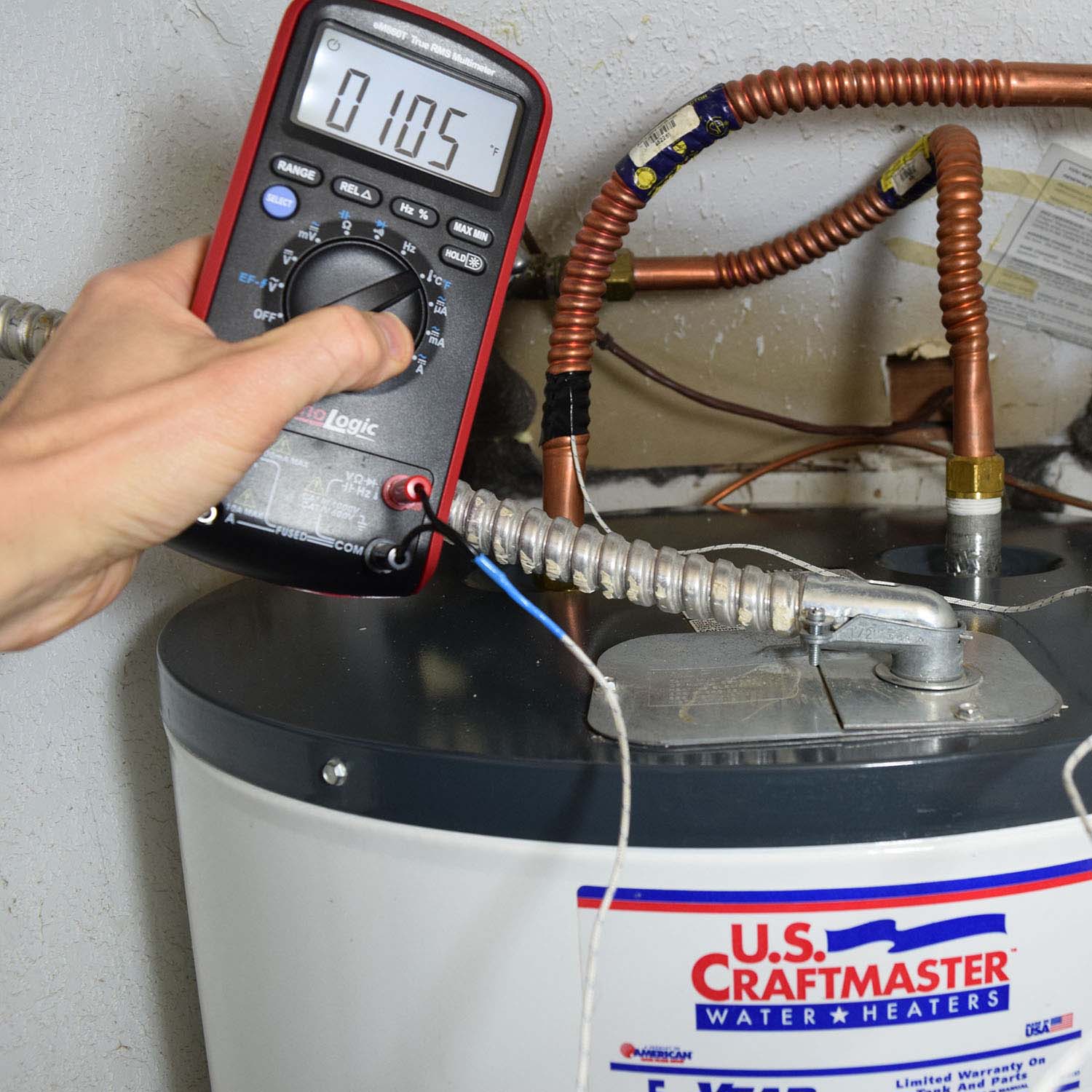

Another feature of the eM860T multimeter that comes in handy when troubleshooting cars is its ability to measure temperatures. Plug in the included temperature probe, and measure the temperature of your AC, coolant hose, muffler and other components. If attaching the probe to the component you want to measure is difficult you can use a non-contact thermometer instead that makes this task a lot easier.

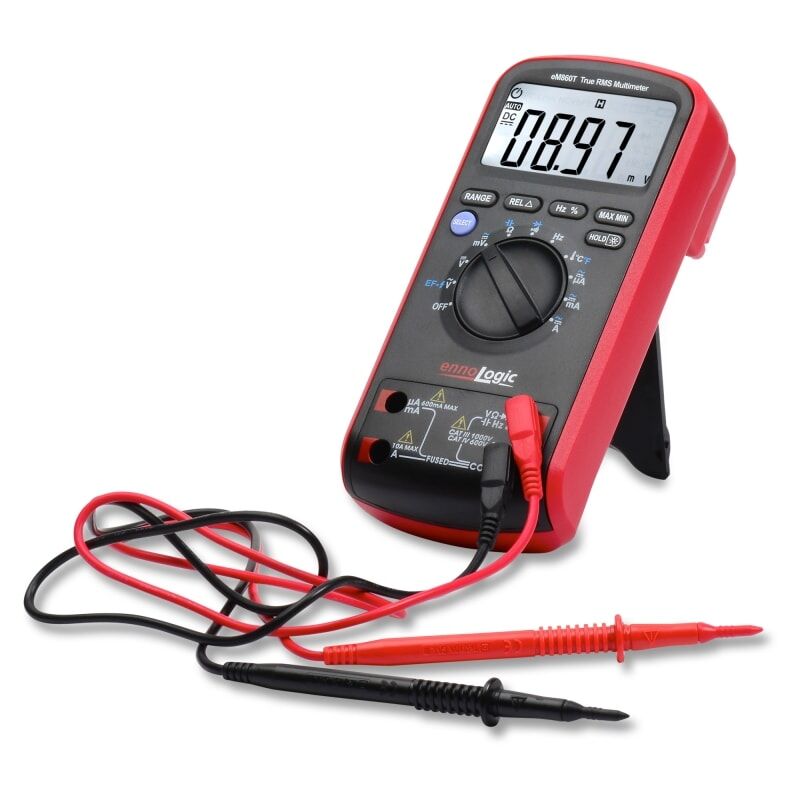

eM860T True RMS-Digital Multimeter with probesQuick and Easy

  1. Install the batteries
  2. Press the Power button
  3. Select your measurement function
  4. Plug in the test leads
  5. Connect the leads to your test circuit
  6. In seconds you’re measuring whatever it is you need to measure safely, accurately and quickly. So simple even a novice can use it!

Features

  • Professional multipurpose multimeter for electricians, home and automotive uses, and electronic projects
  • Large easy-to-read display with 6000 counts for high accuracy
  • Relative measurement function, Max/Min display, and data hold function
  • Auto-ranging, but can be switched to manual ranging as well
  • Bright backlight (15 seconds.)
  • Auto-power off after 15 minutes (can be disabled by user)
  • TRMS (True Root Mean Square) values for all AC measurements
  • Very accurate millivolt range: accurate to 0.5% of reading
  • Microamp (600uA, 6000uA), Milliamp (60mA,600mA), and Amp (6A,10A) current ranges
  • Small burden voltage in uA and mA current ranges for better accuracy: shunt resistance of 100Ohms for uA ranges and 1 Ohm for mA ranges
  • Fast response and quick power up
  • Fast resistance measurements at accuracies of 0.5% for most resistance ranges (1.5% above 6MOhm). Also features audible continuity check and diode test function.
  • Non-contact voltage detect function is useful for voltage detection in power cords, circuit breakers, electrical fixtures, outlets and switches (bar display and beeper.)
  • Compliant with IEC 61010-1:2001, CAT III 1000V and CAT VI 600V overvoltage standards.
  • Durable heavy-duty housing with protective rubber sleeve for mechanical protection.
  • Comes with carrying case, user manual, 9V battery, test leads, and Type K thermocouple probe for temperature readings.
  • 10-Year warranty, hassle-free replacement guarantee, and 100% money-back guarantee

Specifications

  • DC Voltage: 600mV/6V/60V/600V/1000V
  • AC Voltage: 600mV/6V/60V/600V/750V (True RMS)
  • DC and AC Current: 600uA/6000uA/60mA/600mA/6A/10A
  • Resistance: 600/6k/60k/600k/6M/60M (low burden voltage: uA shunt 100 Ohm, mA shunt 1 Ohm)
  • Capacitance: 6nF/60nF/600nF/6uF/60uF/600uF/6mF
  • Logic frequency and Duty Cycle: 1Hz-1MHz
  • Linear frequency: 6HZ~10KHZ
  • Diode Test (incl. LEDs)
  • Continuity Test (beeper)
  • Non-Contact Voltage Detect (bar graph and beeper)
  • Temperature: -200C..1200C
  • Relative Measurement, Max/Min, Data Hold
  • Rated for 1000V CAT III and 600V CAT IV with separately fused current inputs
  • Power: 9V battery (incl.), auto-power off after 15min.

Documentation

pdf  ennoLogic eM860T True RMS Digital Multimeter User Manual

pdf  ennoLogic eM860T True RMS Digital Multimeter Quickstart Guide

Video

Package Contents

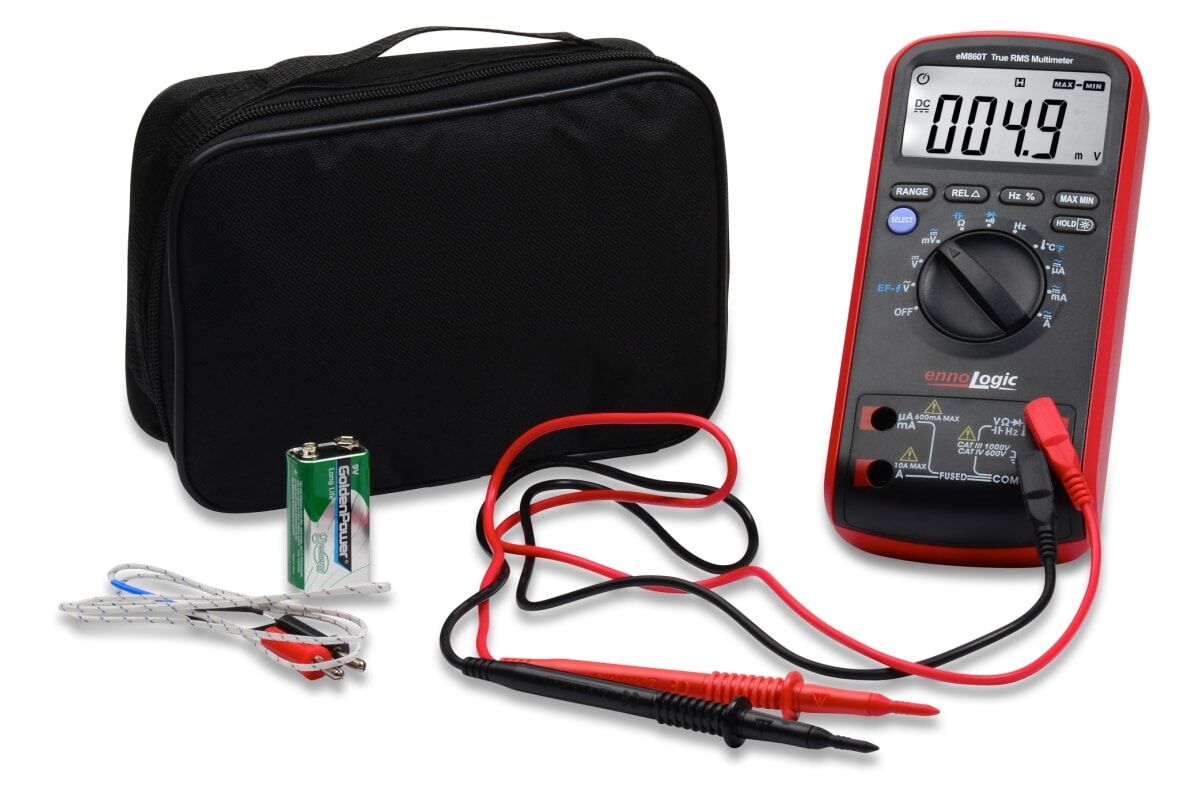

ennoLogic eM860T TRMS Digital Multimeter with case

  • eM860T TRMS Multimeter
  • Test Leads
  • Thermocouple Probe
  • Detailed 50-page User Manual (engl.)
  • 9V Battery
  • Carrying case
