Volt mA Loop Process Calibrator – 0-20V and 4-20mA Signal Generator

$359.45 $329.45

In stock

Test, verify, service and repair transmitters, sensors transducers, controllers, panel meters, recorders and other instruments in the lab or field. Calibrate process devices, or use the eC380V calibrator for research and development of electronics instruments. Perfect test tool for the lab wherever an accurate voltage or current reference signal generator is needed.

The ennoLogic Volt/mA calibrator can generate precise DC voltages (0-20V) or DC milliamp currents (0-24 mA) for calibration and testing of devices and instruments. Please note that it cannot be used to measure and source signals simultaneously, but it does include a 24V loop power supply to simultaneously power and measure 4-20mA transmitters.

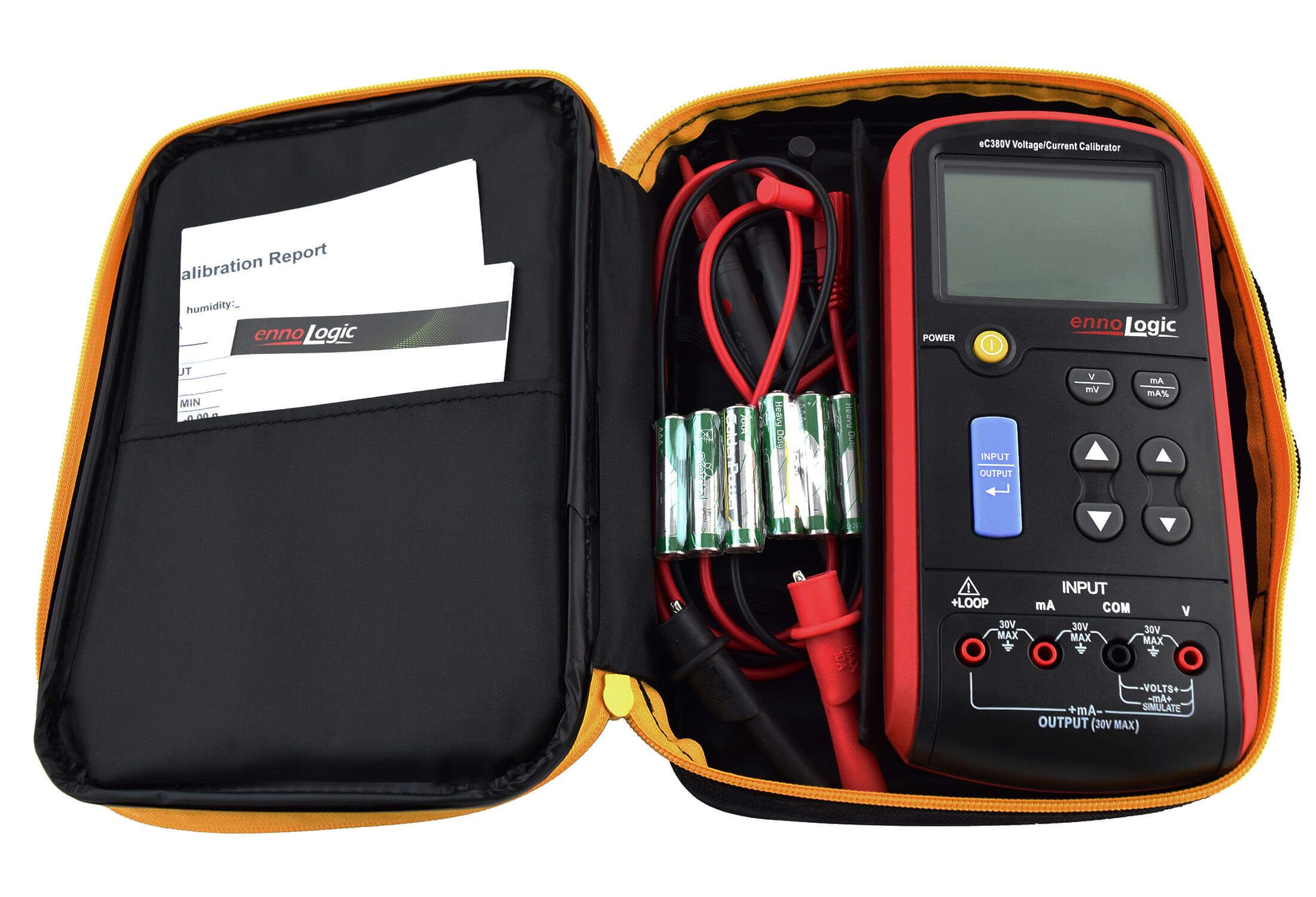

The eC380V is powered by 6 AAA batteries (included) or an optional external 12VDC/2A power supply (not included). It comes with a deluxe carrying case, high-quality test leads and alligator clips and a detailed user manual.

In stock

SKU: EC-380V-CALA Category:

Description

Features

  • VERSATILE AND ACCURATE VOLT MA CALIBRATOR: Signal generator, simulator and volt / mA meter for calibrating, testing and repairing milliamp loops, PLC and HVAC systems. Easily generate precise test signals for current and voltage devices (mA, mV and V ranges).
  • BUILT-IN 24V LOOP SUPPLY lets you power and read a device or transmitter without needing another multimeter. This greatly simplifies testing 2-wire current loops.
  • MEASURE VOLTAGE OUTPUT SIGNALS from process devices and sensors with two input ranges of 0-100mV (0.01mV resolution) and 0-20V (1mV resolution) with 0.02% accuracy. MEASURE CURRENT TRANSMITTERS within a range of 0 to 24mA with 0.001mA resolution and 0.015% accuracy.
  • GENERATE PRECISE TEST VOLTAGES AND CURRENTS for testing loops, transmitters, data logger, meters or any devices that measure 4-20mA currents or sensor voltages. Generate voltages in two ranges: 0-100mV with 0.01mV resolution and 0.02% accuracy, and 0-20V with 1mV resolution and 0.02% accuracy. Generate currents within a range of 0 to 24mA with 0.001mA resolution and 0.015% accuracy.

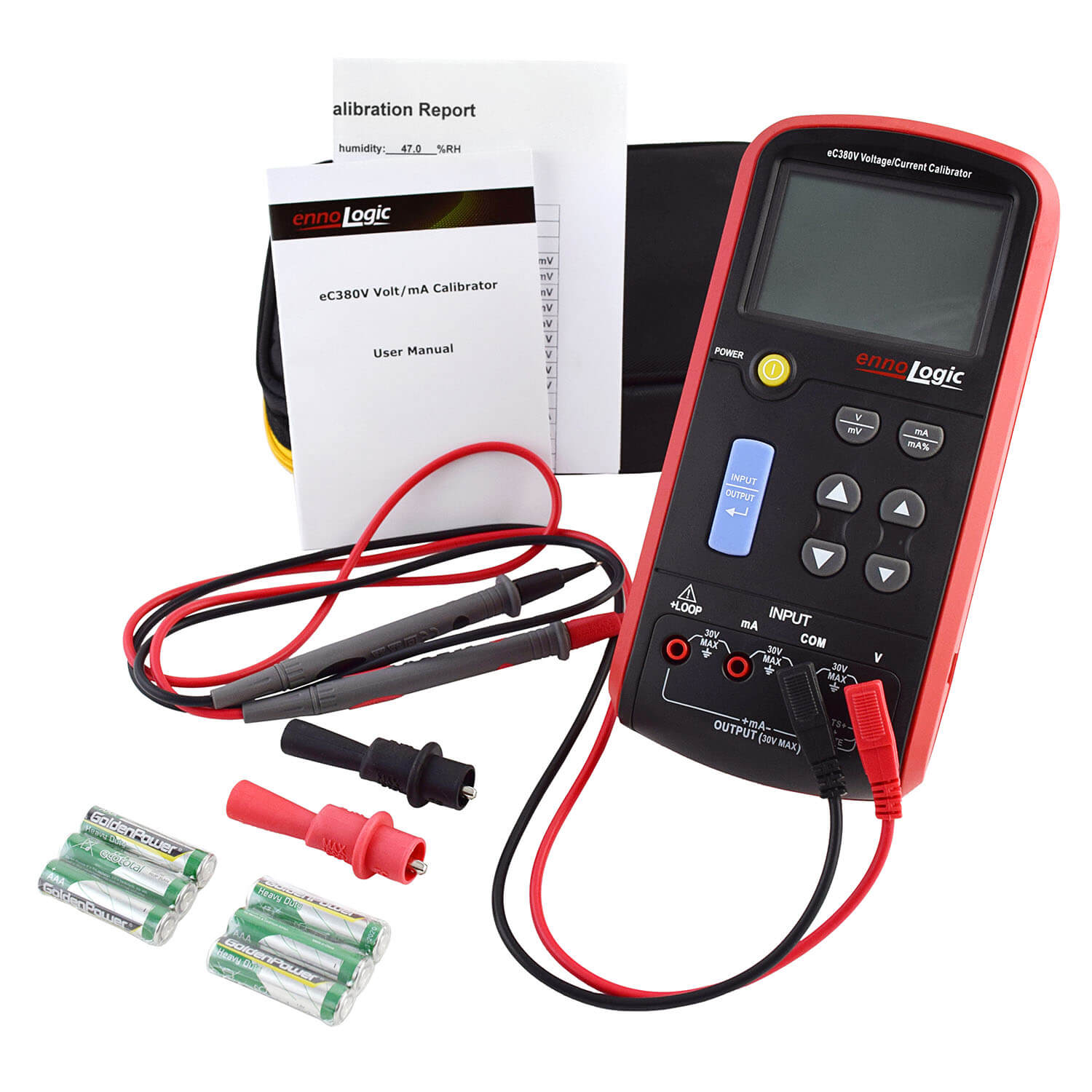

  • The eC380V Volt/mA calibrator is powered by six AAA batteries (included). The package includes one eC380V calibrator, 6 AAA batteries, carrying case, test leads, alligator clips adaptors for test leads, and a detailed user manual.

Specifications

  • Voltage measurement: ranges 0-100mV and 0-20V, resolution 0.01mV and 1mV respectively, accuracy 0.02%+3counts for both ranges
  • Current measurement: range: 0 to 24 mA, resolution 0.001mA, accuracy 0.015%+3counts
  • Voltage output: ranges 0-100mV and 0-20V, resolution 0.01mV and 1mV respectively, accuracy 0.02%+3counts for both ranges
  • Current output: range: 0 to 24 mA, resolution 0.001mA, accuracy 0.015%+3counts
  • Loop power: 24V+/- 10%
  • Power: 6x 1.5V AAA (included). Auto-power-off. Optional 12VDC/2A AC adapter can be used as well (not included)
  • Size: 8” x 3.9” x 1.8”
  • Weight: 460g/16oz incl. batteries

Documentation

pdf  ennoLogic eC380V Volt/mA Calibrator User Manual
