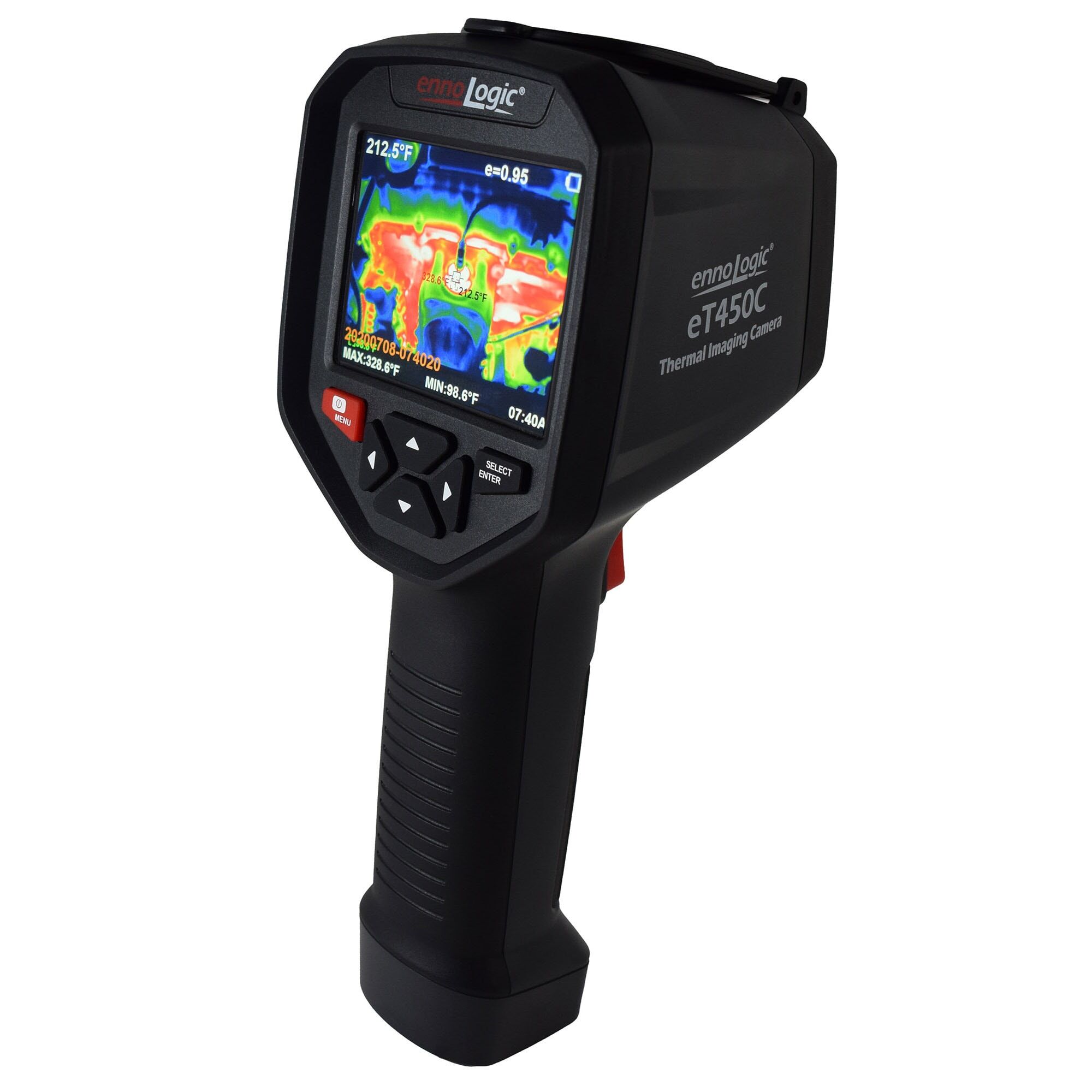

Thermal Imaging Camera eT450C with WiFi

$845.00 $739.95

Availability: Only 2 left in stock

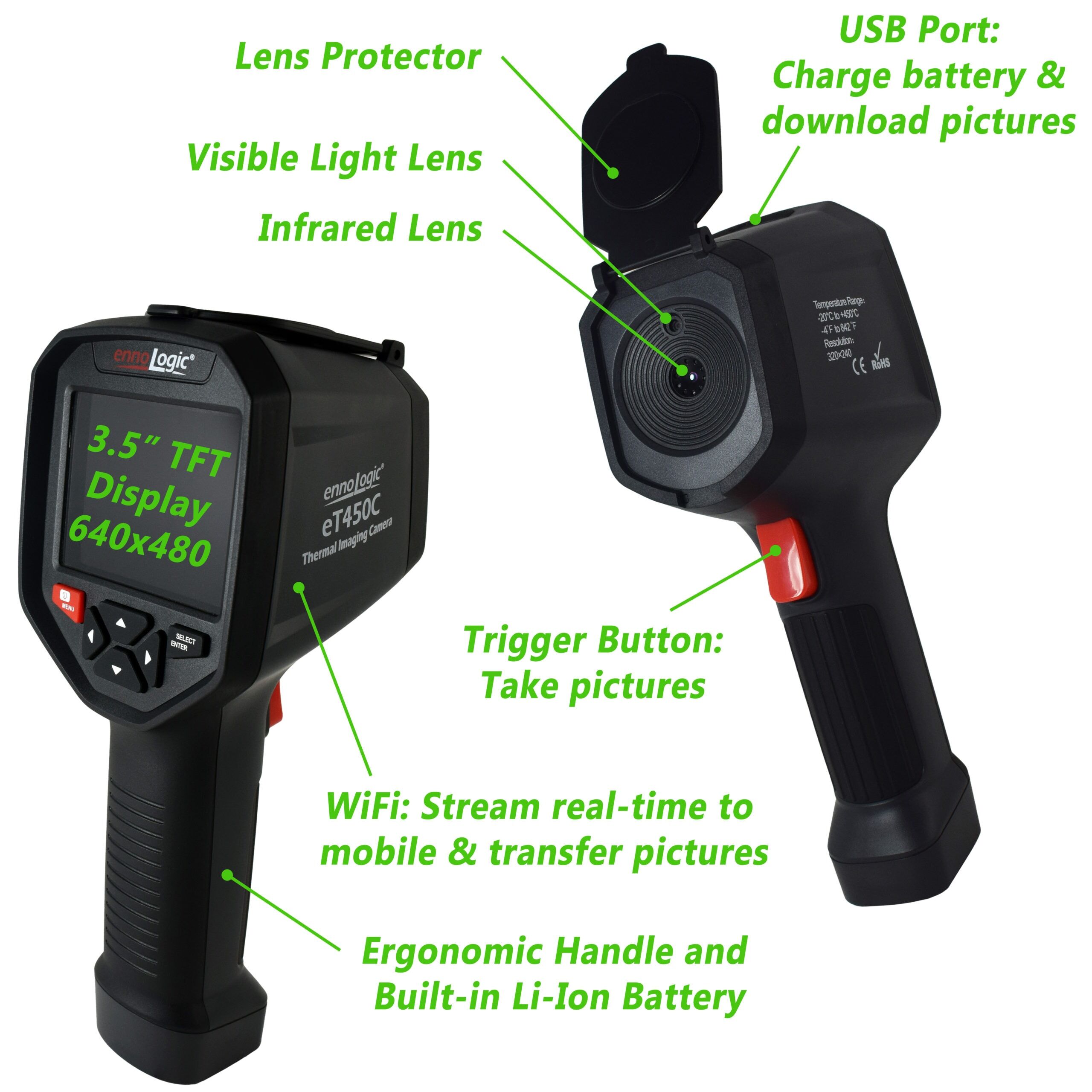

This WiFi-enabled non-contact thermal imager gives you brilliant detailed wide-angle images with automatic on-screen temperature measurement and real-time hot and cold spot seeking. Wide temperature range of -4℉ to 842℉. The gorgeous 3.5″ TFT Display with VGA resolution (640×480 pixels) greatly enhances the infrared image (320×240). Visible and IR images can be viewed separately or overlaid with adjustable opacity. You can even adjust the alignment of the two images to remove parallax effects.

Use the WiFi link to stream images in real time to a mobile device or computer. No app needed, just use a web browser to connect to the camera’s built-in web server. You can also download images and control camera settings. Or use the Micro USB port to transfer images.

The built-in Lithium-Ion internal battery provides hours of use, and can be recharged quickly with the included USB charger.



Description

This WiFi-enabled non-contact thermal imager gives you brilliant detailed wide-angle images with automatic on-screen temperature measurement and real-time hot and cold spot seeking. Wide temperature range of -4℉ to 842℉. The exceptional 3.5″ TFT Display with VGA resolution (640×480 pixels) greatly enhances the infrared image (320×240). The visible and IR images can be viewed separately or overlaid with adjustable opacity. You can even adjust the alignment of the two images to remove parallax effects.

To capture images in the camera’s internal 6.8GB memory simply pull the trigger button.

Use the WiFi link to stream images in real time to a mobile device or computer. No app needed, just use a web browser to connect to the camera’s built-in web server. You can also download images and even control camera settings.

Use the Micro USB port to quickly transfer images. Use the same port and the included USB charger to charge the camera’s internal battery.

Applications for this powerful high-def thermal imager are endless. See insulation holes at a glance. Check your HVAC system with a simple scan. Easily identify hot spots in electrical panels, motor windings, and car engines. Test, troubleshoot and diagnose floor heating installations to detect leakage and failures.

Features

  • Non-Contact thermal infrared imager with automatic temperature measurement, gorgeous large TFT Display and built-in WiFi. Real-time thermal and visible image overlay with adjustable opacity and alignment. 320×240 pixel resolution for thermal image and 640×480 for visible image delivers stunning pictures full of detail for even the most challenging jobs.

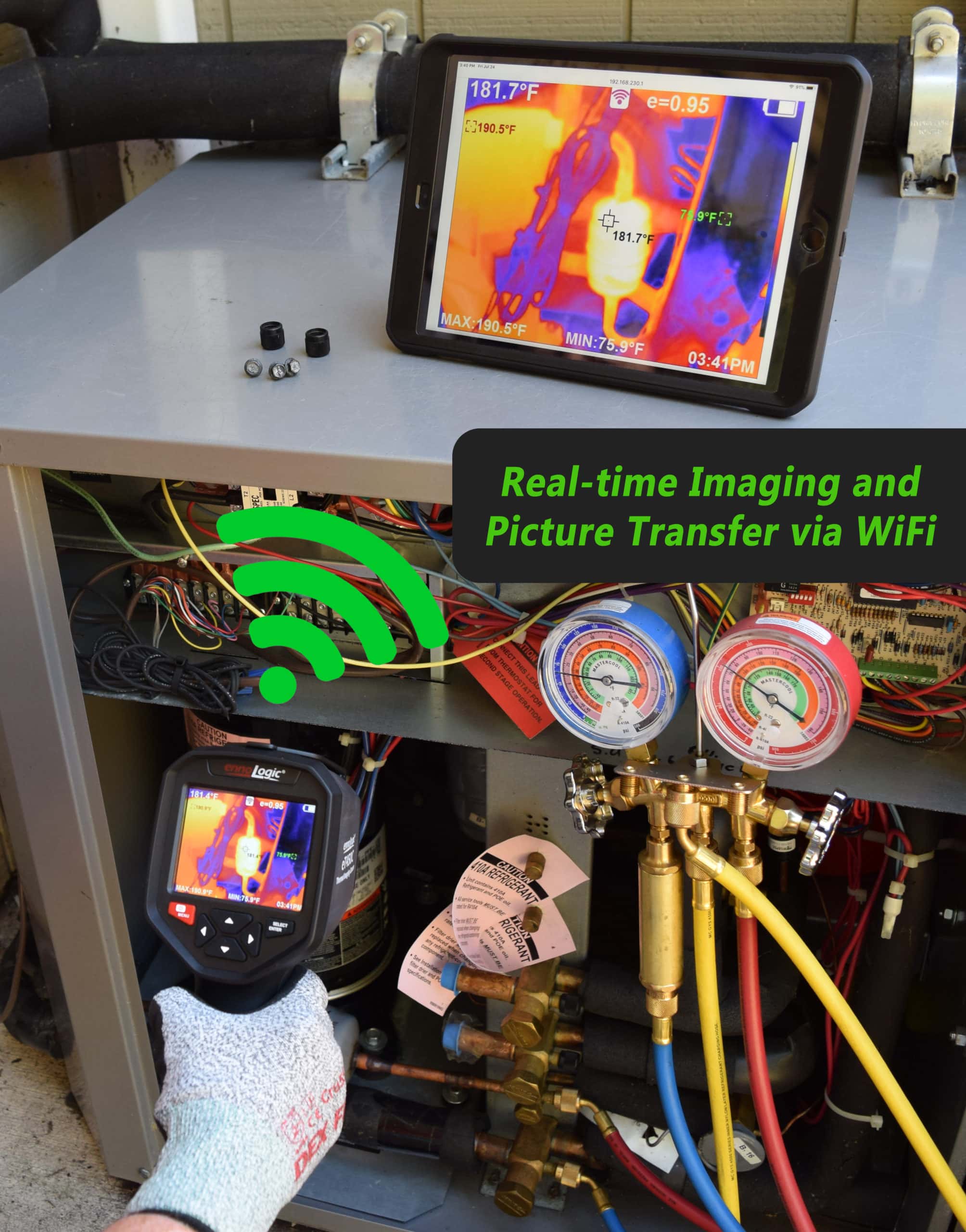

  • CONNECT TO YOUR CAMERA via WiFi: stream live camera images to your computer or mobile device via WiFi, or download stored images. No app required, simply use a web browser to connect to the camera’s built-in web server. You can even control the camera settings from your phone or computer.

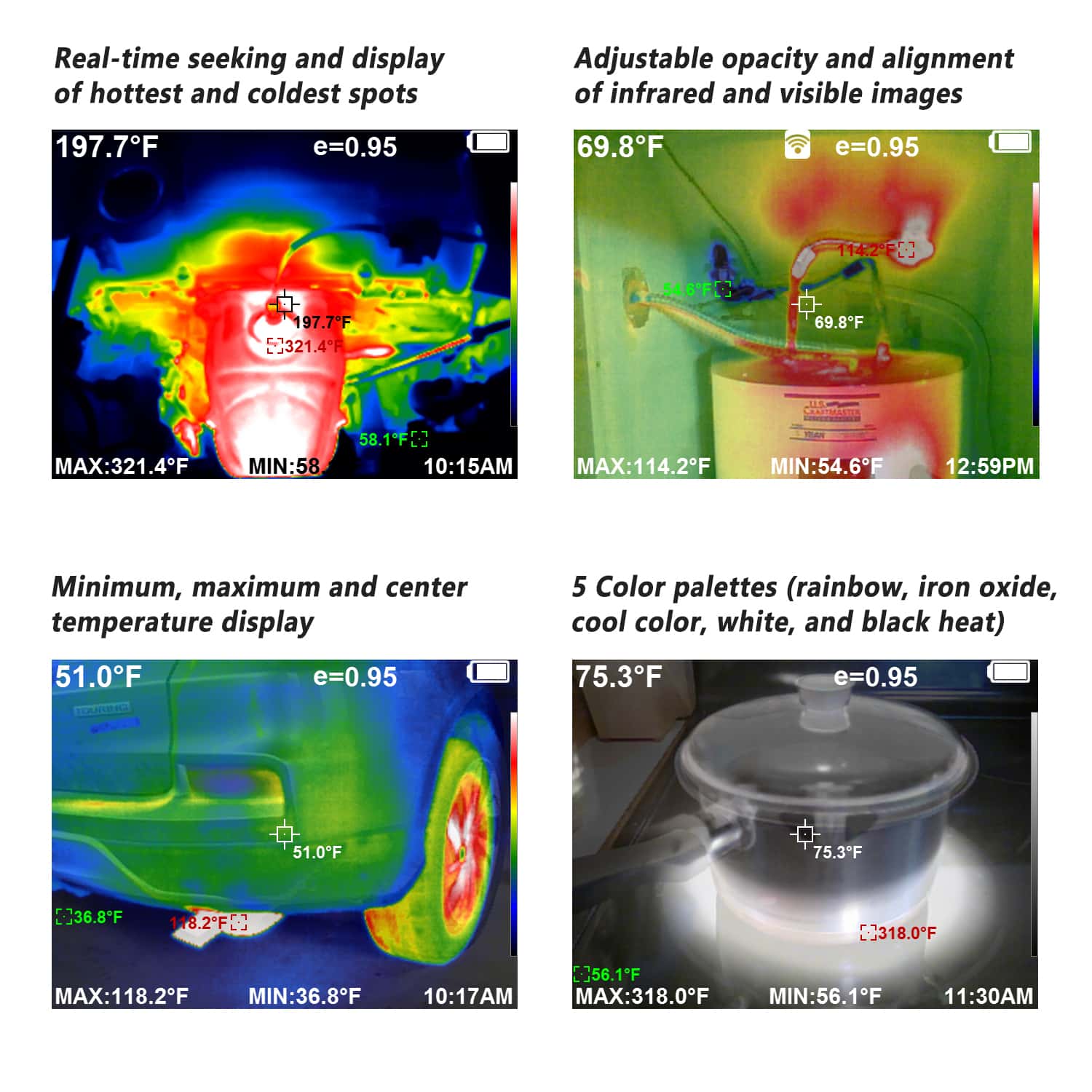

  • Automatic temperature measurement displays on image. Real-time seeking of hottest and coldest spots of thermal image. Adjustable emissivity for increased accuracy. Fast update rate of 9 frames per second. Image capture and storage in internal 6.8GB memory. 5 user-selectable color palettes for thermal image.
  • ADJUST ALIGNMENT OF THERMAL AND VISIBLE IMAGES: Thermal imagers have two separate sensors for visible and infrared light and their images are overlaid. Many thermal imagers do not allow for the correction of misalignment (parallax) between these two images. This camera does, so you can accurately locate hot and cold spots.

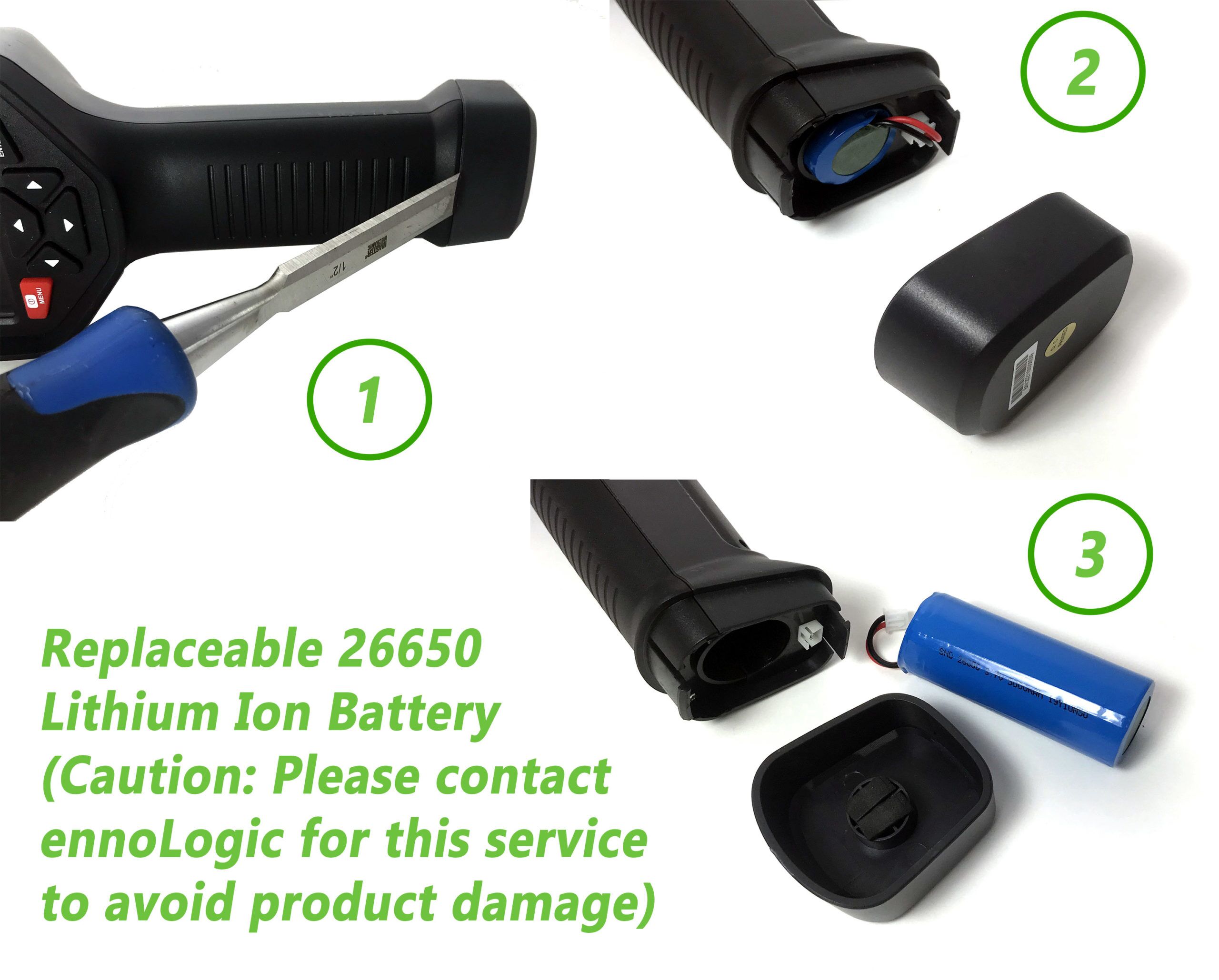

  • Rechargeable high-capacity Lithium-Ion battery provides long battery life of 4 hours continuous use. Recharges quickly with included USB charger. Auto-power off feature ensures you won’t run out in the middle of an important job. (Auto-power off is user-selectable and can be disabled.) Comes in a sturdy hard shell carrying case. Accessories include USB charger with cable and detailed user manual in English.

Specifications

  • 3.5-inch TFT display
  • IR sensor: 320×240 pixels
  • Visible image sensor: 640×480 pixels, auto-focus, 9 fps
  • 5 Color palettes
  • Temperature range: -20℃ to 450℃(-4℉ to 842℉)
  • Measurement accuracy: ≤100℃ ±2℃;100-300℃ ±2%; ≥300℃ ±3%;≥400℃ ±10%
  • Emissivity: Adjustable (0.01 to 1.00)
  • Image storage: internal 6.6GB, jpg format
  • WiFi: real-time streaming, download, settings control
  • Micro USB 2.0
  • Power: Built-in rechargeable Lithium-Ion battery, ~4 hour battery life (less with WiFi enabled), Auto shutdown (5min, 20min, disabled)
  • Size: 10″x4.5″x4″
  • Weight: 1.3lbs

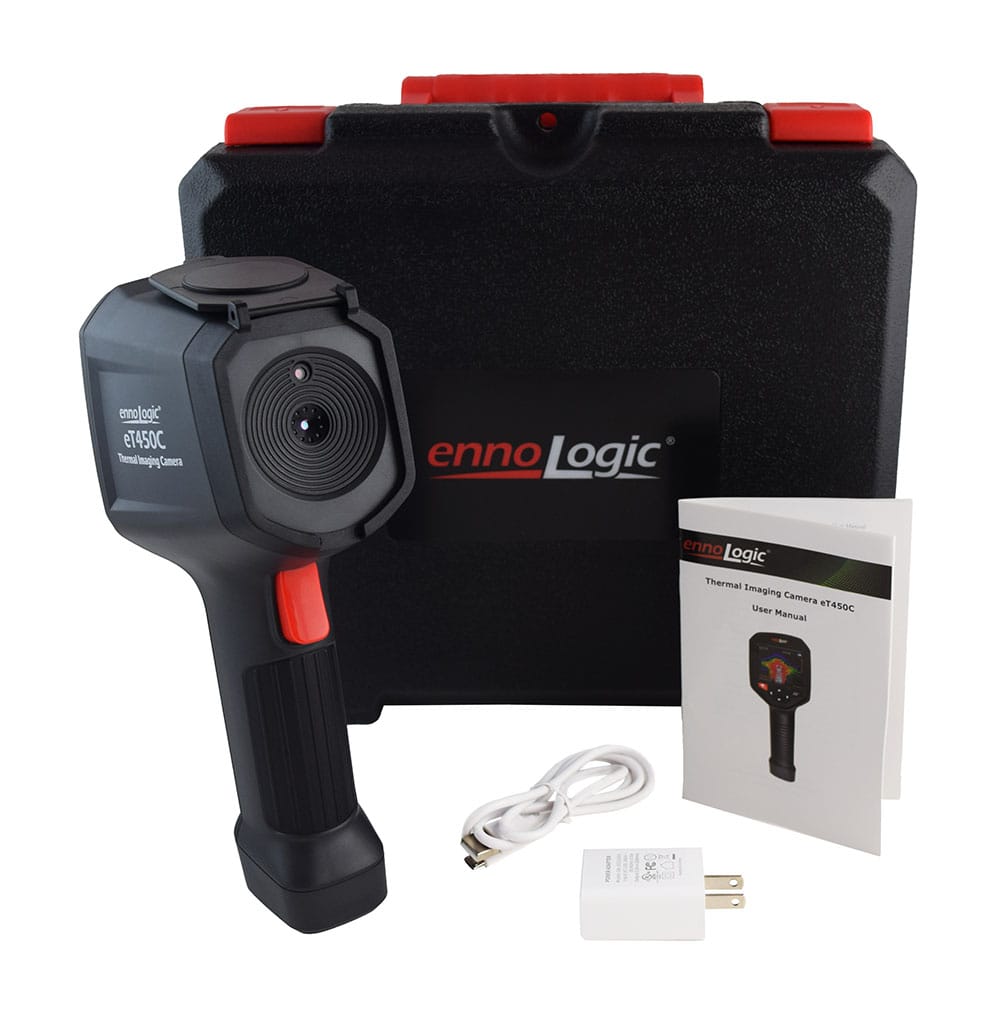

Package Contents

Thermal Imager eT450C - package contents

  • eT450C Thermal Imaging Camera
  • USB charger
  • USB charging cable
  • Hard-shell carrying case
  • User manual in English

Documentation

pdf  ennoLogic eT450C Thermal Imaging Camera  User Manual
